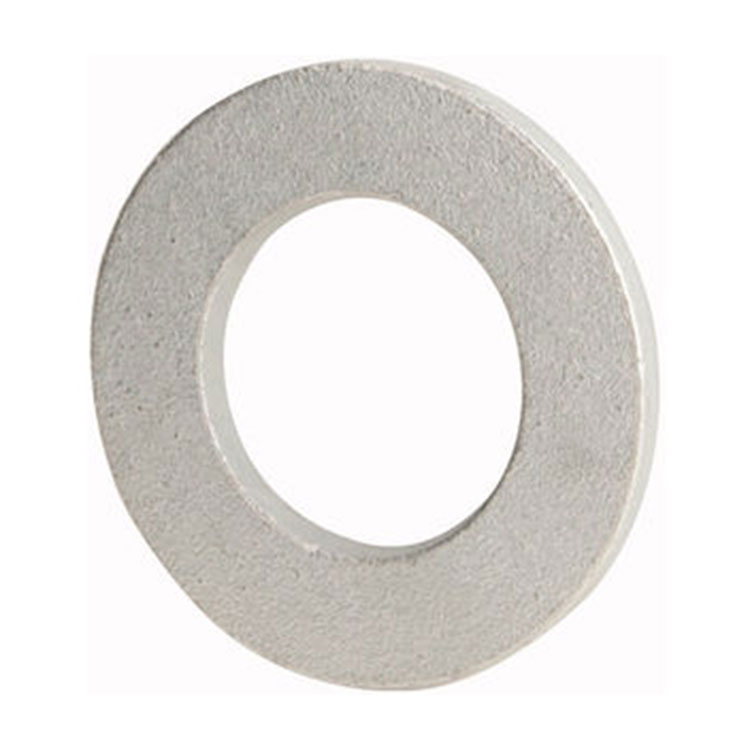

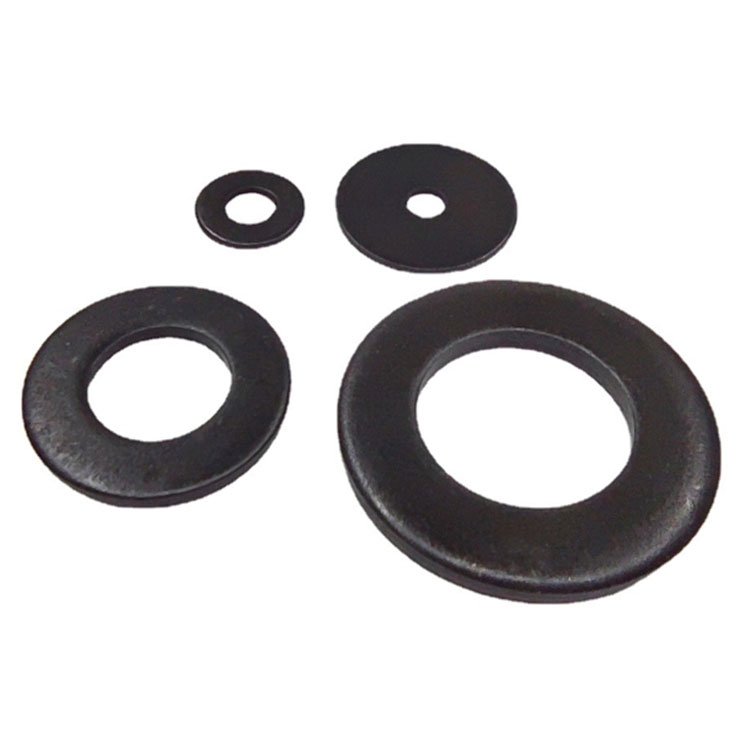

Jiaxing Join Fasteners Co.,Ltd. supply a wide range of DIN6916 Round Washer For Steel Construction. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.
DIN6916 Structural Washers to be used with DIN6914 Structural Bolts and DIN6915 Hex Nut assembled, for Wind Power Generation, Oil Pipeline, or high-strength required fields. Hot Dip Galvanized protects the bolt from corrosion; typically used in outdoor applications.
| Dimensions: | DIN6916 |
| Material and Mechanical: | Per DIN 17 200, Steel quenched and tempered to a hardness from 295-350 HV 10. |
| Finish: | DIN267 Part 10 shall apply with regard to hot dip galvanizing. |
| Head Marking: | Manufacturer’s ID and HV |
| Grade: | A |
| Type: | Structural Flat Washer |
| Test Report: |
The MTR must have documented lot traceability, dimensional results, full chemical test results and full mechanical test results to the specification(s) below. |
|
Nom- inal size1) |
For thread size |
Hole diameter, d1 min.= nominal size max. |
External diameter,d2 max.= nominal size min. |
Thickness,h Nominal size max. min. |
c min.= nominal size max. |
e a |
Mass (7,85kg/dm3), in kg per 1000 units |
|||||
| 13 | M12 | 13 | 13,27 | 24 | 23,48 | 3 | 3,3 | 2,7 | 1,6 | 1,9 | 0,5 | 7,03 |
| 17 | M16 | 17 | 17,27 | 30 | 29,48 | 4 | 4,3 | 3,7 | 1,6 | 1,9 | 1 | 14,6 |
| 21 | M20 | 21 | 21,33 | 37 | 36,38 | 4 | 4,3 | 3,7 | 2 | 2,5 | 1 | 19,6 |
| 23 | M22 | 23 | 23,33 | 39 | 38,38 | 4 | 4,3 | 3,7 | 2 | 2,5 | 1 | 24,3 |
| 25 | M24 | 25 | 25,33 | 44 | 43,38 | 4 | 4,3 | 3,7 | 2 | 2,5 | 1 | 30,6 |
| 28 | M27 | 28 | 28,52 | 50 | 49 | 5 | 5,6 | 4,4 | 2,5 | 3 | 1 | 50,2 |
| 31 | M30 | 31 | 31,62 | 56 | 54,8 | 5 | 5,6 | 4,4 | 2,5 | 3 | 1 | 63,2 |
| 37 | M36 | 37 | 37,62 | 66 | 64,8 | 6 | 6,6 | 5,4 | 3 | 3,5 | 1,5 | 115 |
| 1) Nominal size is equal to d1 min· | ||||||||||||
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
Dial number +86-573-83772218 or email to bob@jjbfasteners.com, your request will be promptly replied.
