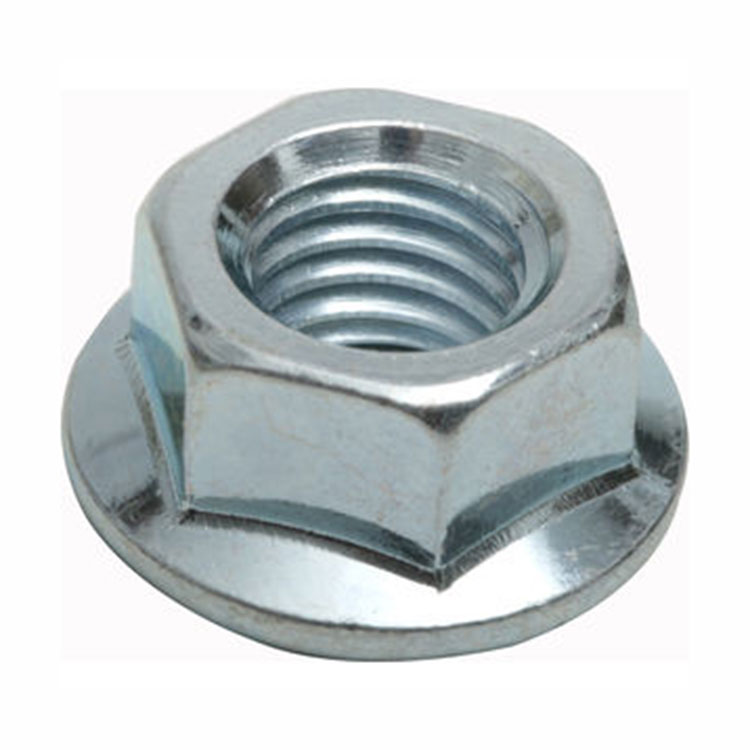

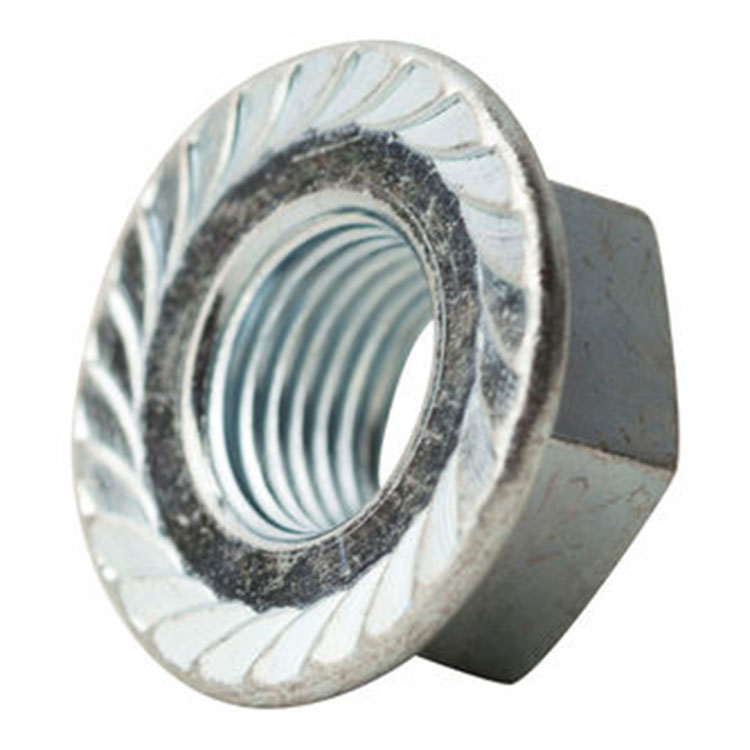

Jiaxing Join Fasteners Co.,Ltd. supply a wide range of DIN6923 Hex Flange Nut. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.
Hexagon flange nuts are mainly used to increase the contact surface with the workpiece, often used in pipeline connection or other occasions that need to increase the contact surface of the nut. This kind of nut has good sealing and anti-corrosion, can effectively prevent rain, moisture, dust and other harmful substances from being immersed, thus prolonging the service life.
| Dimensions: | DIN 6923 |
| Material and Mechanical: | per ISO 898-2 |
| Threads: | 6H per ISO 724; ISO 965-1 |
| Finish: | ISO 4042/Zn5/An or Plain with Light Protective Oil |
| Head Marking: | per ISO 898-2 |
| Grade: | 6, 8, 10 |
| Type: | Metric Hex Flange Nut |
| Test Reports: |
The MTR must have documented lot traceability, dimensional results, full chemical test results and full mechanical test results to the specification(s) below. |
| Diameter | M | S | Dc | ||
| Nut Height |
Width Across Flats |
Bearing Diameter |
|||
| Min. | Max. | Min. | Max. | Max. | |
| M5 | 4.7 | 5 | 7.78 | 8 | 11.8 |
| M6 | 5.7 | 6 | 9.78 | 10 | 14.2 |
| M8 | 7.6 | 8 | 12.73 | 13 | 17.9 |
| M10 | 9.6 | 10 | 14.73 | 15 | 21.8 |
| M12 | 11.6 | 12 | 17.73 | 18 | 26.0 |
| M14 | 13.3 | 14 | 20.67 | 21 | 29.9 |
| M16 | 15.3 | 16 | 23.67 | 24 | 34.5 |
| M20 | 18.9 | 20 | 29.67 | 30 | 42.8 |
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
Dial number +86-573-83772218 or email to bob@jjbfasteners.com, your request will be promptly replied.
Address
Zhifu Centre,Bldg. No.15-1304,1305,Xiuzhou, Jiaxing, Zhejiang, China
Tel
We stand behind our products. All products are manufactured to right specification and high quality standard. Any items found defective or in shortage , an immediate investigation will be conducted and corrective action report will be issued. Claims and returns are given a nice care here.
You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. We have over 18 years experience in exporting various kinds of carbon steel, stainless steel, Bi-Metal fasteners.
Dial number 0086 573 83772218 or email to sales@jjbfasteners.com, your request will be promptly replied.
We rigidly carry out quality control to each step of production:
