Jiaxing Join Fasteners Co.,Ltd. supply a wide range of DIN934 Hex Nut. You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. All products are manufactured to right specification and high quality standard.

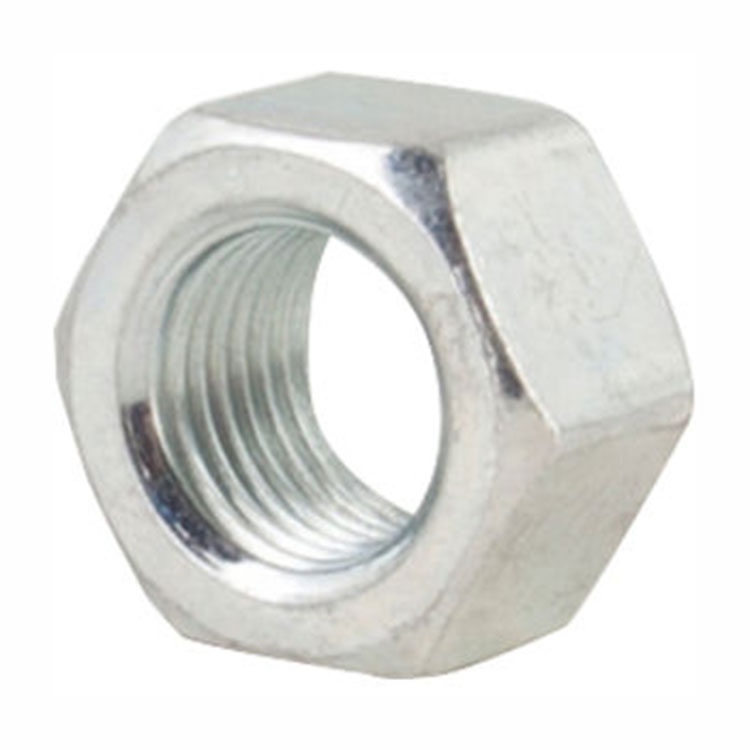

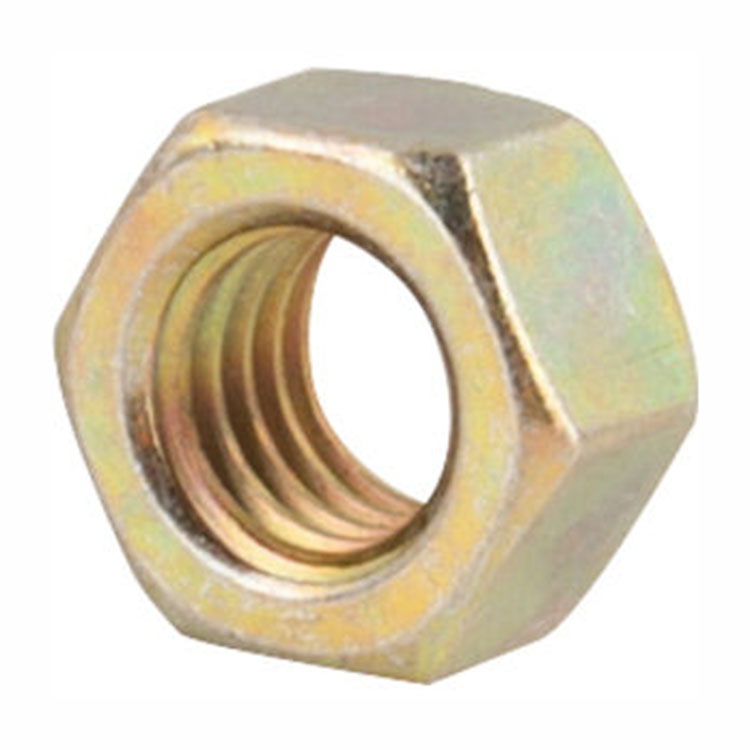

The most versatile and widely used nut. ANSI B1.1 UNC and UNF Class 2B thread requirement. Grade 5. Zinc plating, retards the corrosion rate in a normal atmosphere.Grade 8. Yellow Zinc offers a modest amount of corrosion resistance, slightly higher than that of clear zinc.
| Dimensions: | ASME B18.2.2 |
| Material and Mechanical: | Grade 5 per SAE J995 for ¼” to 1 ½”. For sizes over 1 ½”, hardness testing only to HRB 69 to HRC 32. |
| Grade 8 per SAE J995, except that for sizes over 1 ½”, hardness only shall be tested to HRC 24 to 38. | |
| Threads: | ASME B1.1, UNC, UNF & UNS, Class 2B |
| Finish: | Fe/Zn 3AN per ASTM F1941/F1941M |
| Head Marking: | Grade 5: Manufacturer’s ID and 2 circumferential lines 120° apart |
| Grade 8: Manufacturer’s ID and 2 circumferential lines 60° apart | |
| Grade: | 2,5,8 |
| Type: | Hex Nut |
| Test Reports: |
The MTR must have documented lot traceability, dimensional results, full chemical test results and full mechanical test results to the specification(s) below. |
|
Nominal Size |
F | H | ||
| Width Across Flats | Thickness | |||
| Max. | Min. | Max. | Min. | |
| 1/4 | .438 | .428 | .226 | .212 |
| 5/16 | .500 | .489 | .273 | .258 |
| 3/8 | .563 | .551 | .337 | .320 |
| 7/16 | .688 | .675 | .385 | .365 |
| 1/2 | .750 | .736 | .448 | .427 |
| 9/16 | .875 | .861 | .496 | .473 |
| 5/8 | .938 | .922 | .559 | .535 |
| 3/4 | 1.125 | 1.088 | .665 | .617 |
| 7/8 | 1.312 | 1.269 | .776 | .724 |
| 1 | 1.500 | 1.450 | .887 | .831 |
| 1 1/8 | 1.688 | 1.631 | .999 | .939 |
| 1 1/4 | 1.875 | 1.812 | 1.094 | 1.030 |
| 1 3/8 | 2.062 | 1.994 | 1.206 | 1.138 |
| 1 1/2 | 2.250 | 2.175 | 1.317 | 1.245 |
| 1 5/8 | 2.43 | 2.35 | 1.416 | 1.364 |
| 1 3/4 | 2.625 | 2.538 | 1.540 | 1.460 |
| 1 7/8 | 2.813 | 2.722 | 1.651 | 1.567 |
| 2 | 3.000 | 2.900 | 1.763 | 1.675 |
| 2 1/4 | 3.375 | 3.263 | 1.986 | 1.890 |
| 2 1/2 | 3.750 | 3.625 | 2.209 | 2.105 |
| 23/4 | 4.125 | 3.988 | 2.431 | 2.319 |
| 3 | 4.500 | 4.350 | 2.654 | 2.534 |
Price term: FOB,CIF,CFR,EXW,DDP,DDU.
Lead time: Normal 45-60 days.
Packing way: Packing for warehouse(bulk in master carton, small boxes packing),
DIY packing for store(tubs,cards, kits, pouches,etc.).
Payment terms: TT, LC, we offer our close clients flexible payment terms and financial solution.
Dial number +86-573-83772218 or email to bob@jjbfasteners.com, your request will be promptly replied.
Address
Zhifu Centre,Bldg. No.15-1304,1305,Xiuzhou, Jiaxing, Zhejiang, China
Tel / WhatsApp
We stand behind our products. All products are manufactured to right specification and high quality standard. Any items found defective or in shortage , an immediate investigation will be conducted and corrective action report will be issued. Claims and returns are given a nice care here.
You can always rely on our team for a premium-quality, competitive pricing, on-time delivery, one-stop buy business partnership. We have over 18 years experience in exporting various kinds of carbon steel, stainless steel, Bi-Metal fasteners.
Dial number 0086 573 83772218 or email to sales@jjbfasteners.com, your request will be promptly replied.
We rigidly carry out quality control to each step of production:
