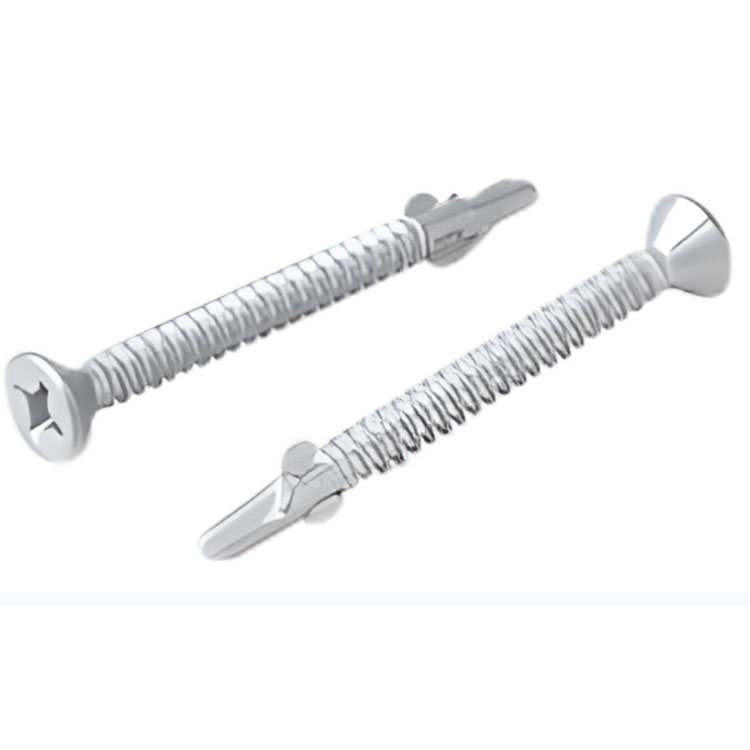

The reason why the phillips flat head self-drilling screw with wings chooses a flat head design is that this design perfectly matches its unique functional positioning and application scenario requirements compared to the traditional pan head, round head or countersunk head design. Cross recessed flat head self-drilling screws with wings are mainly used to quickly penetrate and fasten thinner metal sheets (such as color steel plates, aluminum alloys), PVC boards or wooden materials, especially in situations where a large area needs to be flat and fit and avoid local material deformation.
The flat head design provides the largest head contact area. When the screw is locked, the bottom plane of its head can evenly distribute the clamping force on the surface of the washer or the connected part, effectively avoiding pits, deformation and even material tearing caused by excessive pressure when used on thin and soft materials. This is difficult to match with round heads and pan heads. Although the countersunk head is also flat, it has extremely high requirements for countersunk hole accuracy and is not suitable for fast self-drilling.
In addition, the "wing" design of the phillips flat head self-drilling screw with wings realizes the self-drilling capability without pre-drilling. The flat head structure not only provides good axial support stability and prevents drilling deviation during this process, but its larger flat surface can immediately and smoothly cover and press the edge of the drill hole after drilling through, and cooperates with the matching flat washer to form a better sealing surface, which is especially important in metal roofing or wall panel applications that require waterproofing and windproofing.
The flat head design also simplifies installation, without the need to prepare complex countersunk holes in advance (required for countersunk screws), and with the versatility of the cross recess, it greatly improves the installation speed and efficiency. The pan head and round head with raised heads may not be able to fit tightly and flat after drilling through or produce unnecessary stress concentration at the stress point, while the phillips flat head self-drilling screw with wings ensures the relative flatness of the surface after installation and the uniformity of the force at the connection point through the flat head design. Therefore, considering the protection of thin plate materials, the need for uniform pressure on the contact surface, the efficiency of rapid self-drilling installation, and the sealing and flattening effect after installation, the flat head design has become the most ideal and irreplaceable choice for cross recessed flat head winged self-drilling screws.
-
